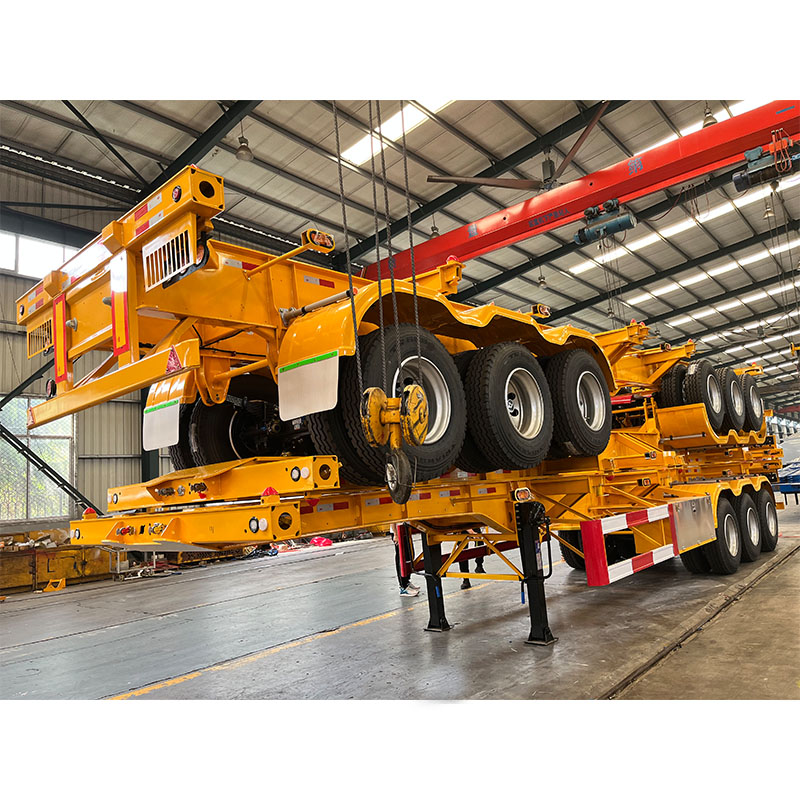

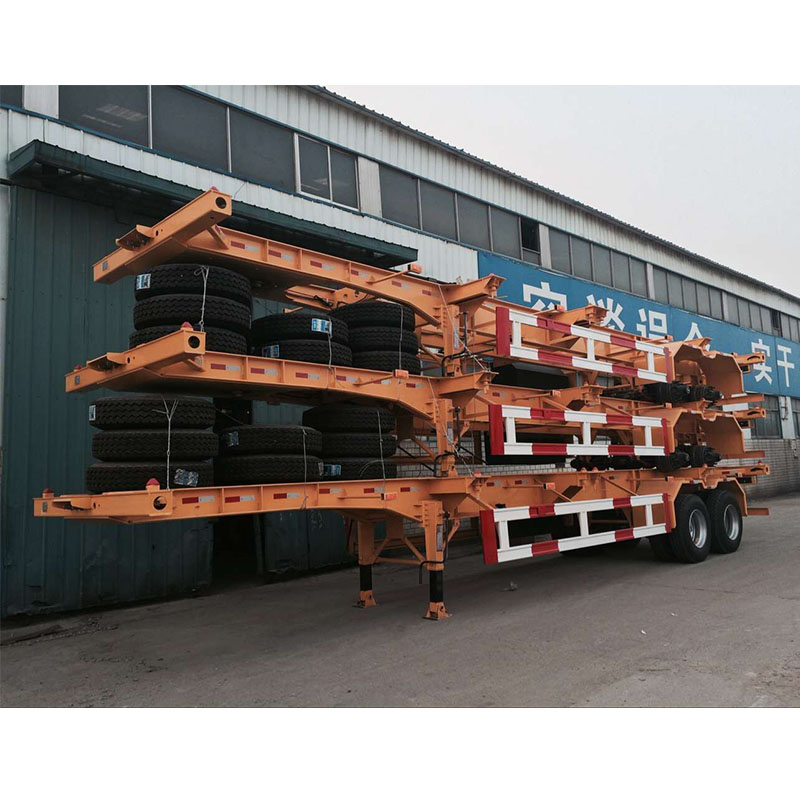

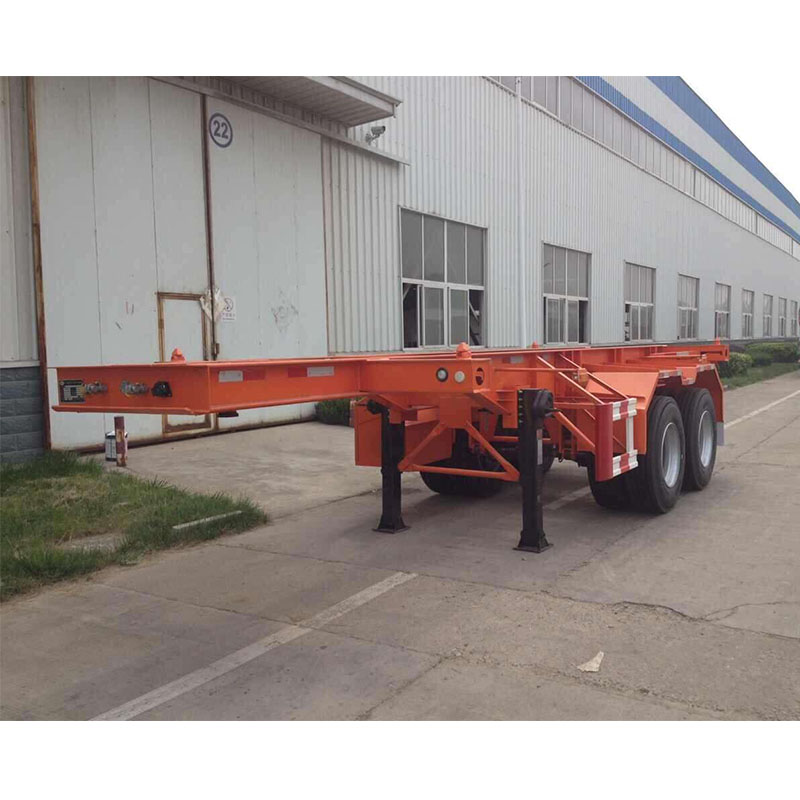

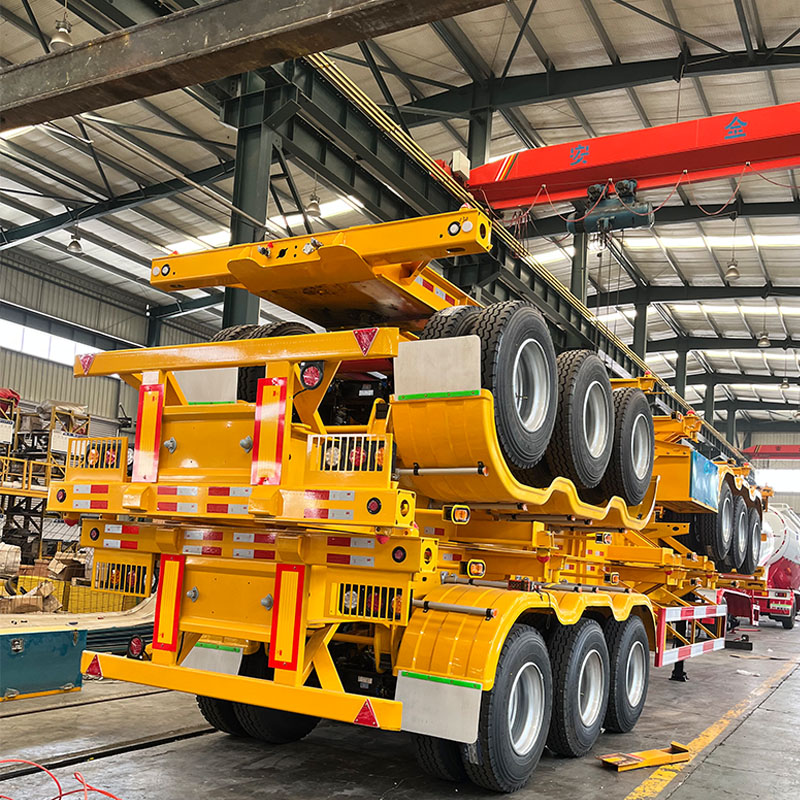

CHINA SINEWHUA skeletal trailer

Only brand new original CHINA SINEWHUA skeletal trailer factory price

PRODUCT DESCRIPTION

We have more options for your choice, accept customization

Name	Skeletal trailer
Overall dimensions	About 7500mmx2480mmx1600mm
Loading capacity	30ton
Main beam	Q345, Top flange 12mm,width 140mm; Middle Flange 8mm height 500mm; bottom flange 14mm,width 140mm
Axle	2 axles, 13T, brand FUWA
Landing gear	Two-speed,manual operating,heavy duty landing gear 28T, brand JOST
Kingpin	90#(3.5'') or 50#(2''), brand JOST
Suspension	mechanical spring
Leaf spring	10pcs13mm90mm
Tyre	12R22.5,tubeless tyres, 8pcs, brand TRIANGLE
Twist locks	4pcs
Painting	Complete chassis sand blasting to clean rust , 2coat of anticorrosive prime,2coats of final paint
Braking system	WABCO RE6 relay valve;T30/30 spring brake chamber;40L air tanks
Other	One standard tool box,one spare tire carrier,LED lights
Color	Optional
Friendly tips	More options for you, please contact us to supply exact parameters, pictures and prices for you specially
